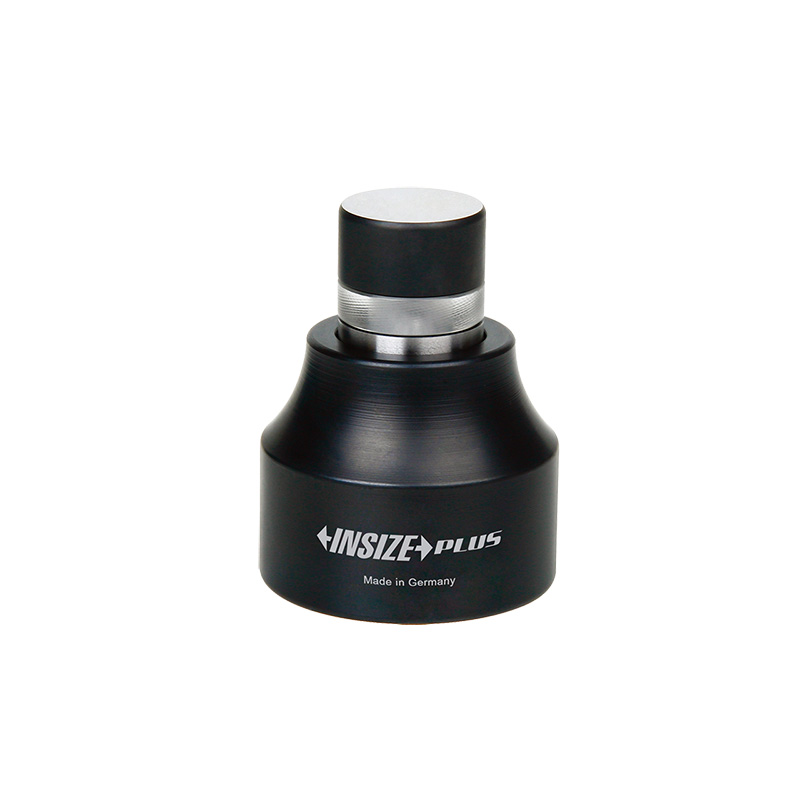

Electronic Zero Setter
Code: 6553-50

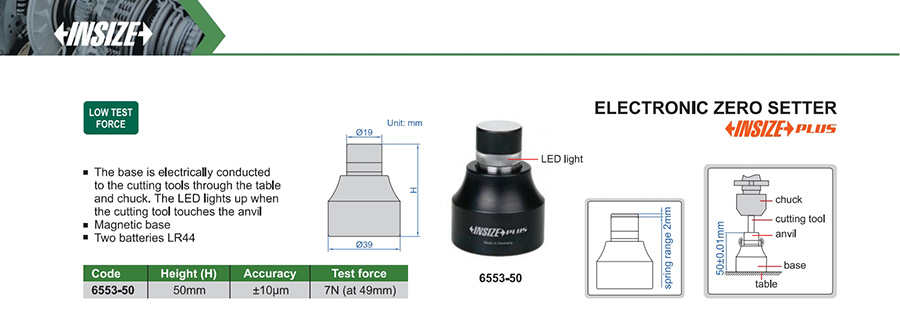

The base is electrically conducted to the cutting tools through the table and chuck. The LED lights up when the cutting tool touches the anvil
Magnetic base
Two batteries LR44
Specification
| Code | Accuracy | Test force | Height (H) |
|---|---|---|---|
| 6553-50 | ±10µm | 7N (at 49mm) | 50mm |
