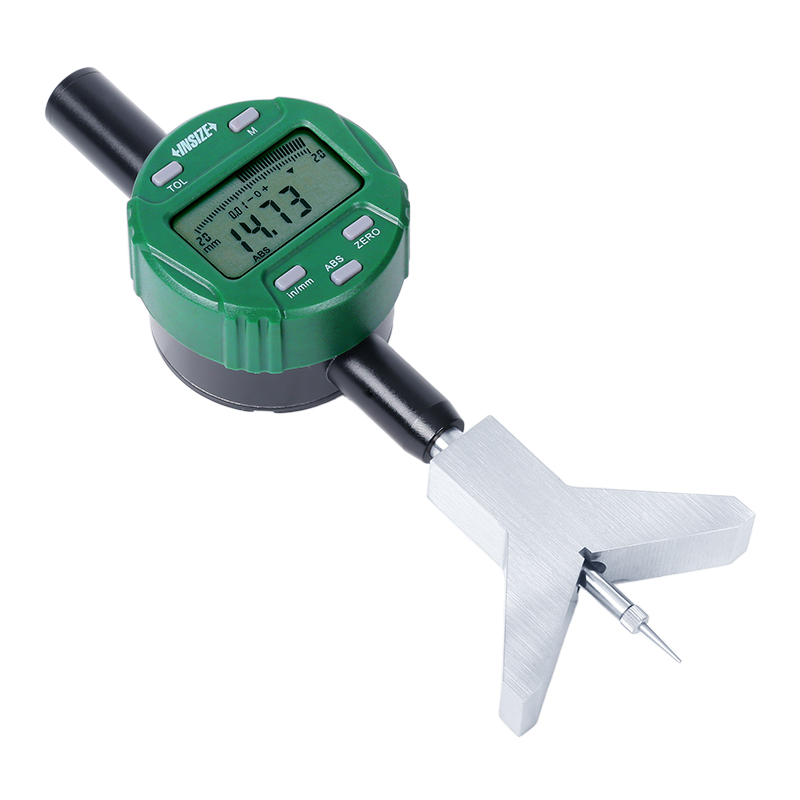

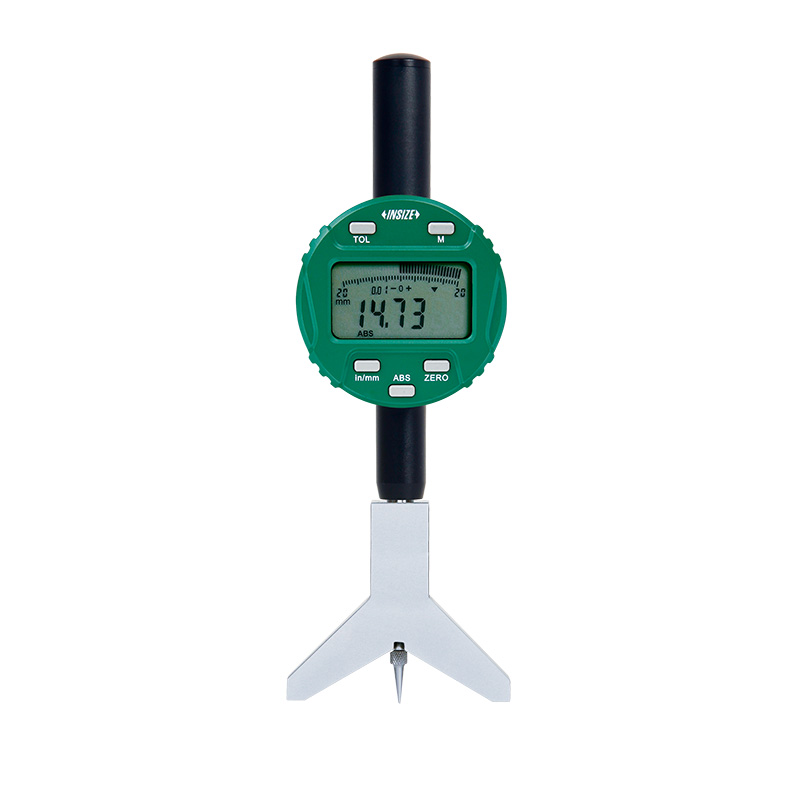

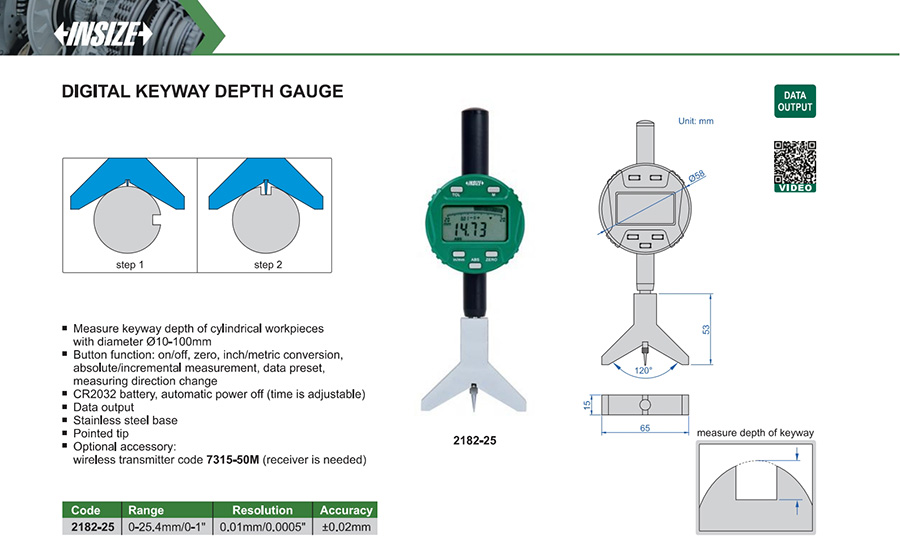

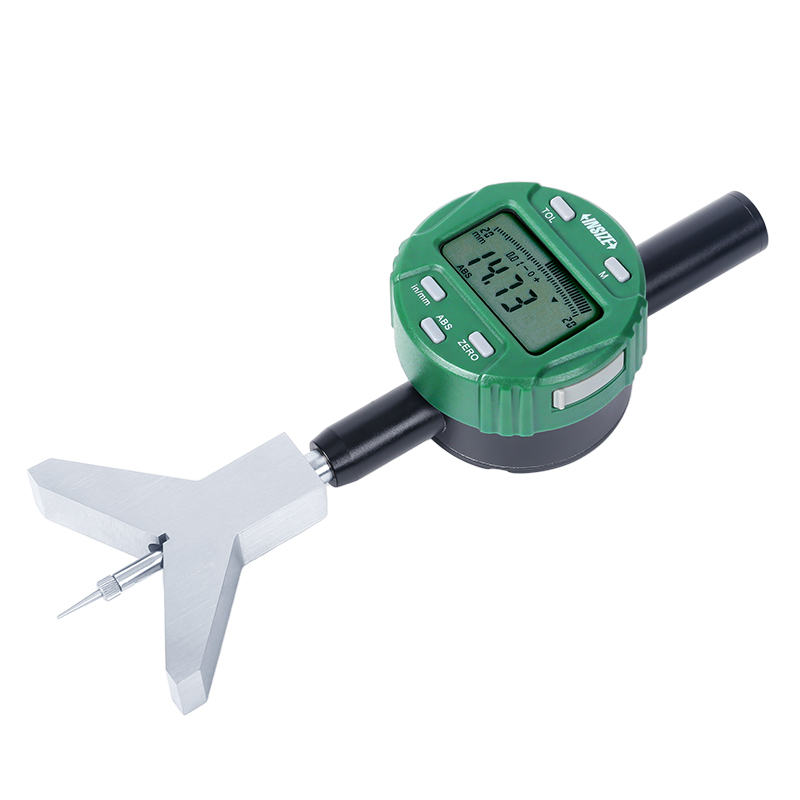

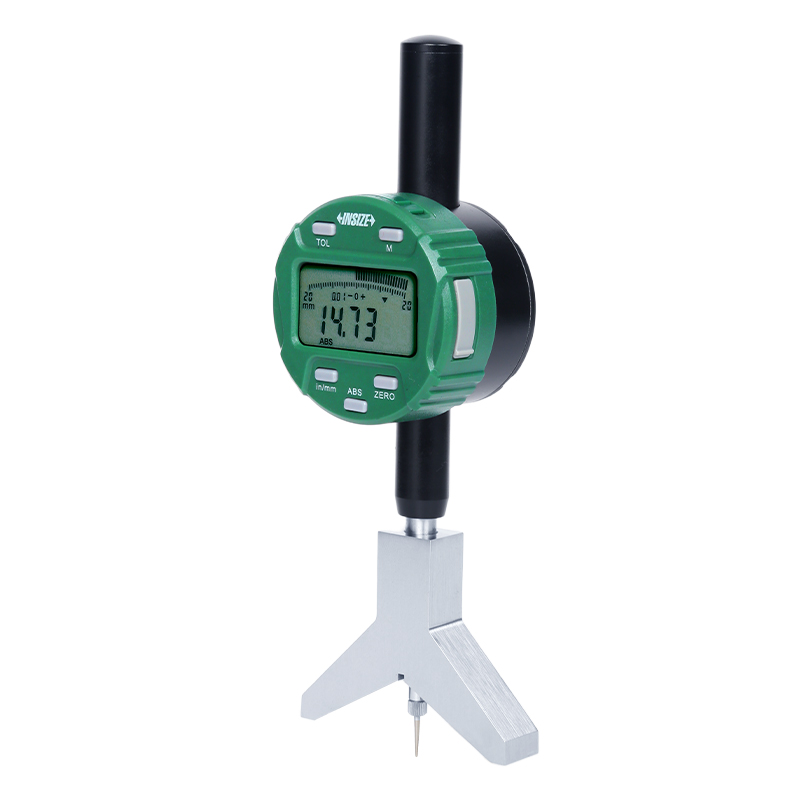

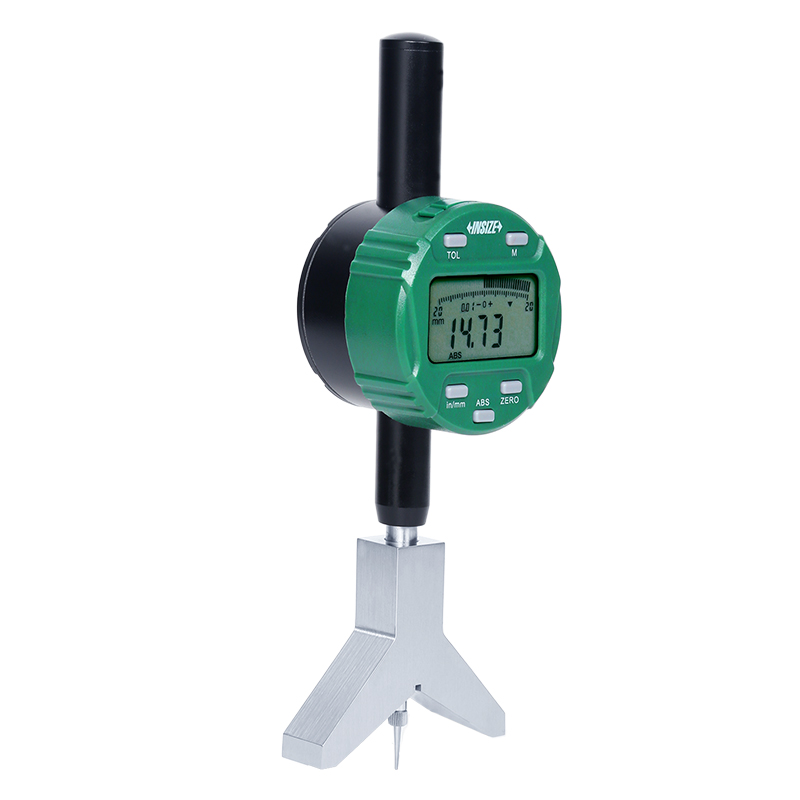

Digital Keyway Depth Gauge
Code: 2182-25
Measure keyway depth of cylindrical workpieces with diameter Ø10-100mm
Button function: on/off, zero, inch/metric conversion, absolute/incremental measurement, data preset,measuring direction change
CR2032 battery, automatic power off (time is adjustable)
Stainless steel base
Pointed tip
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2182-25 | 0-25.4mm/0-1" | ±0.02mm | 0.01mm/0.0005" |
